Air Requirements
One of the most important benefits of the Viking Mini, besides its price, is that it is designed to function using plant air supply. Most factories only have compressors that generate 7 bar and an air volume of 500 to 3000 liter/min available, which for most cleaning jobs with the Viking Mini should be sufficient to achieve the desired result.
Low Noise
There’s almost no noise – operating at sound levels as low as 75 dB makes it possible to work even without hearing protection. Dry ice blasting in an area where other people are working is possible with a Viking Mini, meaning you can drastically reduce your downtime.
Nozzles and Blast Hose
The standard 3- and 5-mm flat aluminum nozzles are machined for low air flow and together with the lightweight 3-meter ½ inch blast hose, the operator has an easy to handle set-up. To achieve the optimum cleaning performance for air consumption under 1000 L/min, the flat 3 mm nozzle should be used and the dry ice pellet size should be 2.2 mm or smaller. If using the 3 mm industry standard dry ice pellets, the 5 mm flat nozzle should be used.
Control
Dry ice consumption can be regulated from 10 to 30 kgs/hour and the blast pressure can be adjusted between 2 to 12 bar.

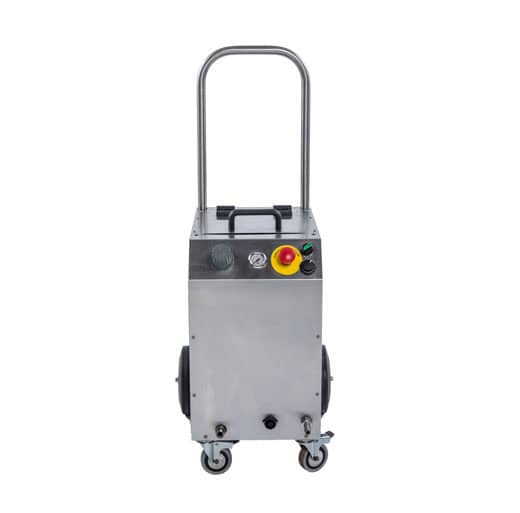

Easy to Transport, Maneuver and Store
Weighing only 29 kgs and with dimensions of 550 x 480 x 895 mm, the machine can easily be lifted into a car or stored on a shelf. Equipped with wheels and holder for the blast hose, rolling it to the point of use is an effortless task.
Dimensions
- Height (handle in lowest position): 610 mm / 24 in
- Height (handle in highest position): 895 mm / 35.2 in
- Width: 480 mm / 18.9 in
- Weight: 29 kg / 64 lb
- Dry ice hopper capacity: 8 kg / 17.6 lb
- Dry ice consumption: 10-30 kgs (22-66lbs)/hour
