Techniques

Vapour Blasting

Vapour blasting, also known as dustless blasting, uses a mixture of compressed air, media, and water vapour to clean surfaces. Wickens has become the standard for eco-conscious abrasive blasting using vapour dustless blasting technology, with the consumption of less than one quart of water per minute, mixed with your choice of abrasive, and operating pressures as low as 30 psi or as high as 130 psi.

Vapour blasting is ideal for:

Vapour blasting is a proven solution when it comes to surface prep for nuclear plants, bridges, large painting and coating contractors, waste treatment plants, non-ferrous metals, and many more. Vapour dustless blasting is also commonly used for cleaning purposes and restoration. Its non-aggressive technique ensures that only unwanted materials are removed and that surface components, including critical dimensions and shaping, remain unchanged. With vapour dustless blasting, you can minimize contaminants, reduce cleanup, and lower your disposal costs.

The Benefits of Vapour Blasting

  • Reduced media consumption
  • Ultra-low dispersal properties
  • Reduced run off
  • Eliminates 90% of airborne particles
  • Less waste material to dispose of
  • Effective in rain and high humidity
  • Remove coating without damaging sub-surface
  • Eco-friendly
  • Cost-effective

The Vapour Blasting Process

Vapour dustless blasting works by using an abrasive process of mixing blast media with water to create a vapour liquid also known as slurry mix. The slurry mix is then pressurized in the power unit. Once the blast cleaning hose is primed with the slurry mix, blasting commences and is controlled by the operator using the blast nozzle. The blasting nozzle works on a convergence/divergence system that accelerates the wet vapour flow with pressures as low as 35 psi and as high as 125 psi. These variable settings are used to attenuate the blast stream for low or high aggression.

The system eliminates 95% of dust associated with dry media blasting systems such as sand blasting by encapsulating the media in water so that bounce-back of dust is virtually eliminated.

Features of Vapour Blasting

A key feature of vapour dustless blasting is its use of water. Water rings and water infusers are commonly used on dry blasting hoses in an attempt to lower dust levels, but these are less effective than vapour blasting slurry because the blast stream itself is still dry. More importantly, water infusers and rings use city water at 3 to 5 gallons per minute or 180 to 300 gallons per hour. This amount of water use can have a significant and detrimental impact on work sites and containments, whereas vapour blasting uses less than 18 gallons per hour, drying quickly with the media and facilitating an easier cleanup.

Another important feature of vapour dustless blasting is media consumption. Because the blasting is partly accomplished by the flow of water, media consumption is reduced. Depending on the application, consumption of media may drop to as low as 40% of dry blasting levels. For some jobs, this will mean a reduction of 2-3 tons of waste per week.

When executing vapour dustless blasting, the choice of abrasive is based on the level of aggression required for a given application. Some examples of media include:

  • Crushed glass
  • Garnet
  • Olivine sand flour
  • White lightening

Wickens Dry Ice Blasting uses vapour dustless blasting equipment that is fully portable and powered by a mobile air compressor. Effective blast hose lengths can reach up to 400 feet from the power unit.

These features combine to make vapour blasting an ideal tool for use in lead and asbestos abatement where the speed and effectiveness of blasting can be had without the dust hazards and high water level problems.

Vapour Blasting Applications

Vapour dustless blasting is a non-destructive cleaning method suitable for many applications:

  • Industrial Cleaning: Removing industrial coatings for inspection; preparing surfaces to coat; cleaning storage tanks; removing rust and scale; removing roadway markings; building maintenance.
  • Restoration of brick, block, stone buildings; stucco and log homes; grave markers/headstones; artefacts and historic pieces.
  • Marine cleaning such as bottom paint removal; running gear; teak decking.
  • Graffiti removal and cleaning of highways; concrete; automobiles; wood; statues; stucco.

Locations Served

Our mobile fleet offers Vapour Blasting to locations all across Ontario, including Toronto, Ottawa, Kingston, London, Burlington, Kitchener-Waterloo, Hamilton, Niagara, St. Catharines, Windsor, Barrie, Sudbury, Sarnia, and more.

Certifications

Case Studies

Case Study: Fire Restoration on High-Rise Building

Learn how Wickens used DOFF cleaning on soot and fire residue to clean the exterior of a nine-storey high-rise building in our latest case study.

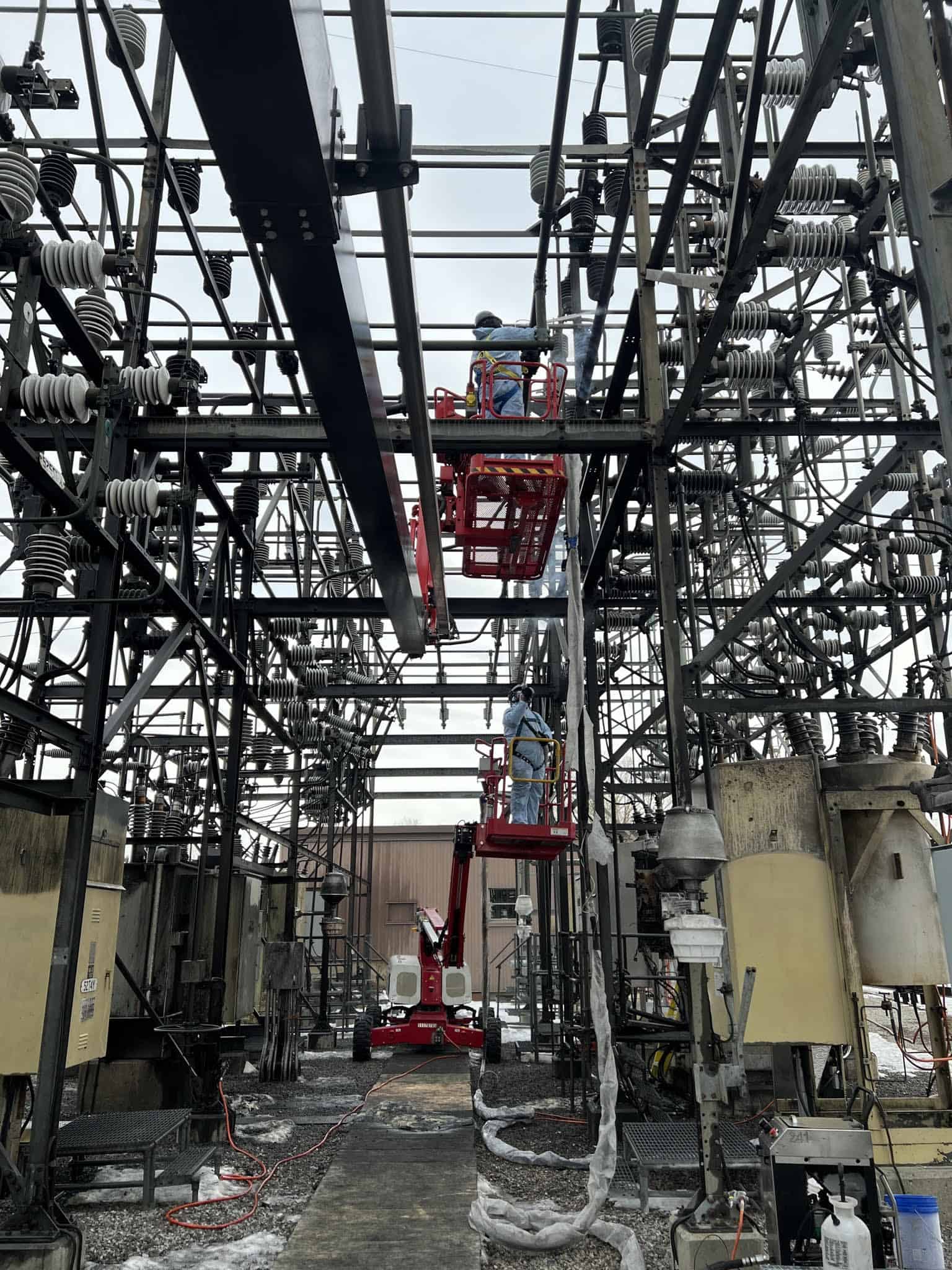

Case Study: Fire Restoration at Hydro Substation
